FilmGrade™ HYBRID LED Strip Lights
FilmGrade™ HYBRID LED Strip Lights
FilmGrade™ HYBRID LED Strip Lights

FilmGrade™ HYBRID LED Strip Lights

3002.HY  - In Stock

Regular price $139.00 Sale

  • Features both tungsten (3200K) and daylight (6500K) on a single LED strip
  • Achieve any color temperature between 3200K and 6500K

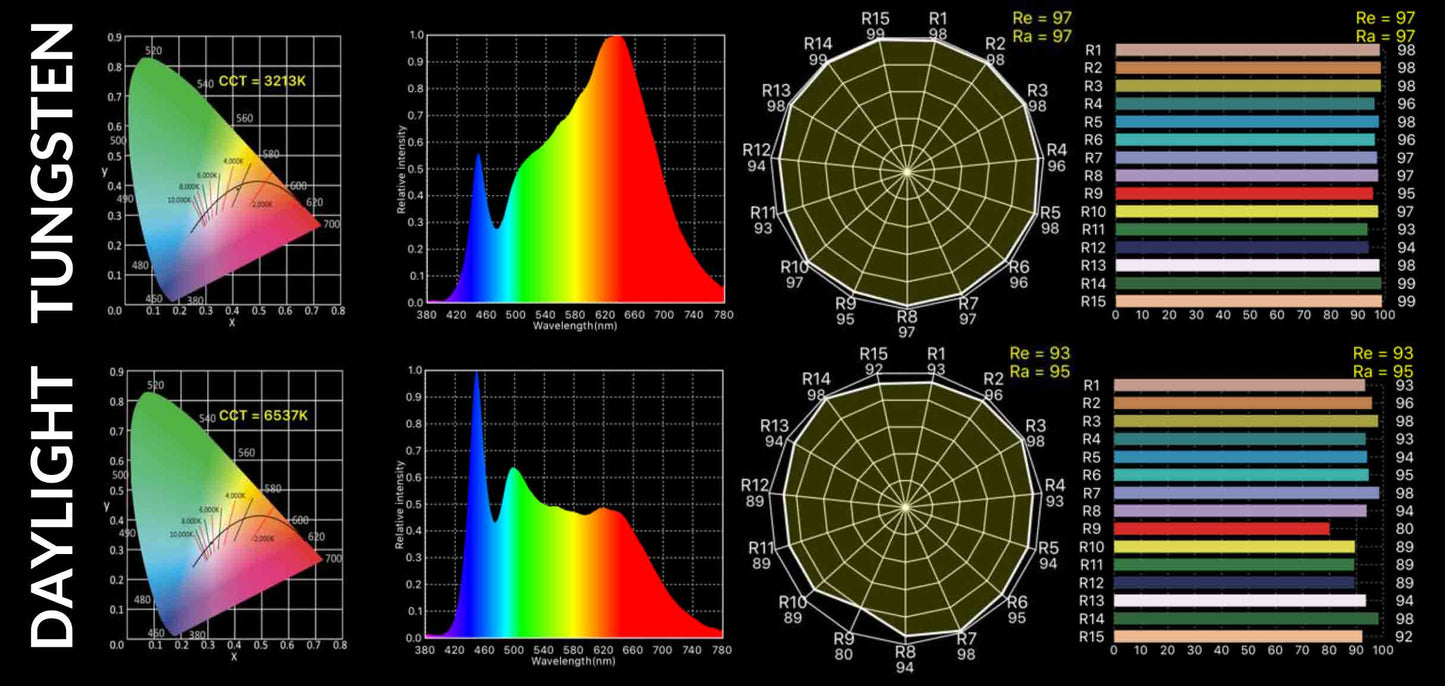

  • 95+ CRI and R9 > 80
  • Color correct to within ± 1/32 green
  • 450 lumens per foot (1500 lumens per meter)
  • Comes in a 16-ft reel (5 meters)
  • 24V DC constant voltage input (power supply and dimmer sold separately)
  • 3M VHB double-sided adhesive for easy and secure mounting
  • Uses WIRE system: 24V+ common positive and separate ground wires for each of the 3200K and 6500K channels
  • 4 oz copper for reduced voltage drop
  • Free ground shipping to USA addresses
  • In stock and ships in 1 business day
  • See our delivery policy here


HYBRID White LED products feature both tungsten (3200K) and daylight (6500K) white emitters that can be blended together to create any color temperature in between. Now you can use a single LED product to match ambient natural daylight by day, and incandescent by night, or whatever color balance you need right then and there.

Learn more about how to control HYBRID white systems here.


 FilmGrade LED strip lights are designed for cameras. Using a blend of full spectrum phosphors, our LEDs are specially tuned to achieve high CRI & color correct light output at 6500K (daylight) and 3200K (tungsten). Our 95 CRI and 95 TLCI ratings ensure that you can spend more time shooting and less time correcting.

Requires 24V DC input to operate. FilmGrade power supply (PN 3092) can operate a full reel (16 ft / 5 m) of this LED strip.

Using a third-party power supply? No problem - just make sure your power supply has enough power capacity for the length of LED strip you plan on connecting.

FilmGrade HYBRID LED strips use the WIRE system, and have three wires mounted on both ends of the strip. The wires are color coded and correspond to the following:

  • BLACK: 24V (+)


Pre-applied 3M VHB double-sided tape on the back side allows for simple but reliable installation. Peel back the liner and apply to virtually any surface.

These LED strips can be cut to length in 4 inch intervals using just a pair of scissors.

FilmGrade LED strips are flicker free and fully dimmable down to 0%. For a manual flicker-free PWM dimmer, see PN 3081. For DMX dimming, see our flicker-free DMX decoder (PN 3082).

Product Overview

Waveform Lighting's FilmGrade™ white LED strips are professional-grade lights designed for use on film, TV and broadcast sets as well as continuous output photography applications. They are fully color correct and are spectrally tuned to match the wavelengths necessary to capture full color on camera.

Premium LEDs are specified to ensure not only high CRI/TLCI, but color accuracy within ±25K and ±75K for tungsten and daylight, respectively. Each LED strip is also specified to be within ± 1/32 green color correction.

The back side of the LED strip includes pre-applied 3M VHB® double-sided tape, which provides a simple but extremely strong adhesive mounting method for all of your projects.

The LED strips are 16.4 feet (5.0 meters) in length, and are conveniently reeled for quick and easy application, and can be cut to length in one or two inch intervals (for 12V and 24V versions, respectively) with just a pair of scissors.

FilmGrade LED strips are an indispensable tool in a photographer, DP, gaffer or lighting designer's lighting arsenal.

FilmGrade High CRI Color Correct LED Strip 5

Product Downloads

Specification sheet download   Specification Sheet

Specification sheet download   3200K Photometric Report

Specification sheet download   6500K Photometric Report
