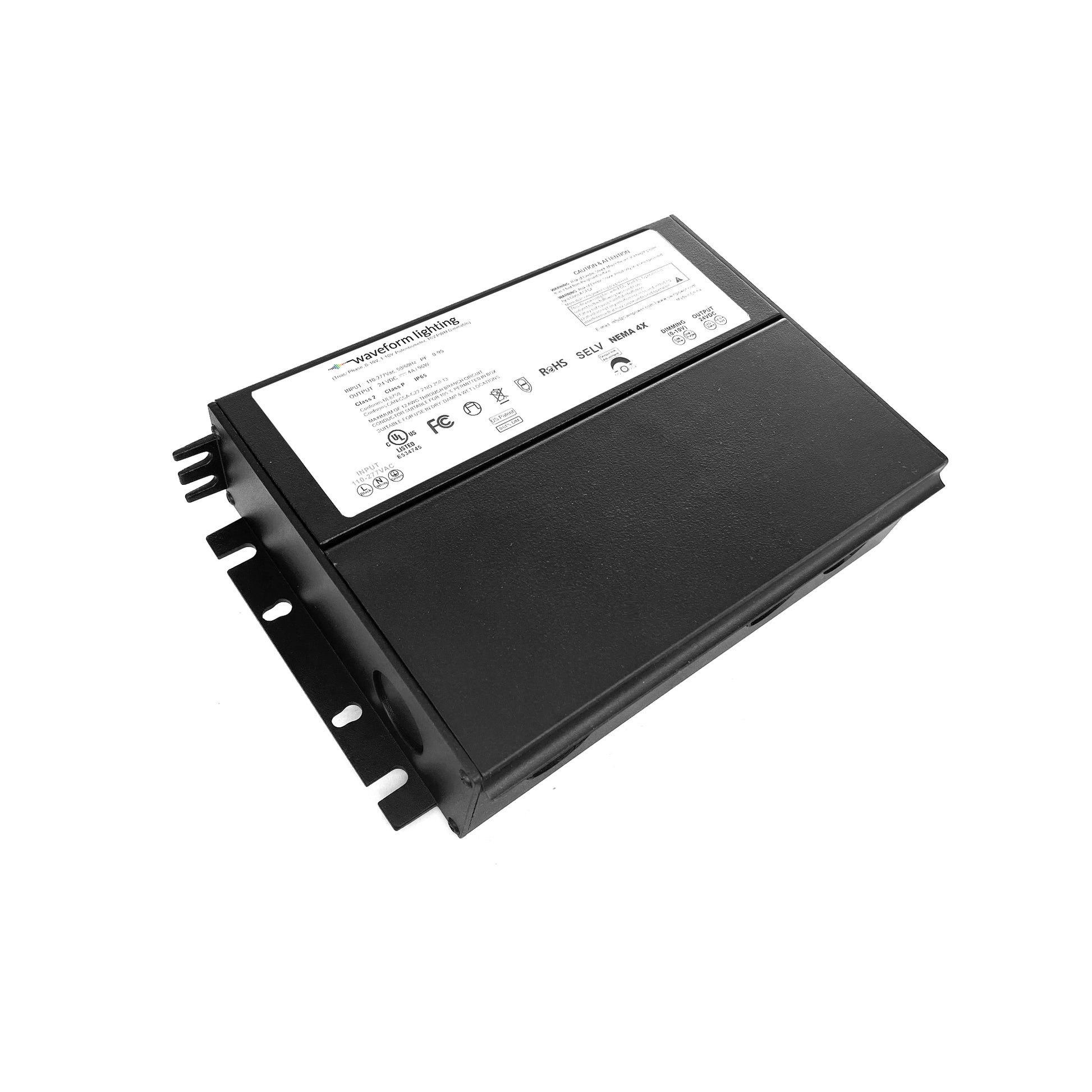

CENTRIC PRO SERIES™ Flicker-Free Dimmable Power Supply with Integrated Junction Box

CENTRIC PRO SERIES™ Flicker-Free Dimmable Power Supply with Integrated Junction Box

PART NUMBER 3902.24.096 | Out of stock- SHIPS Jul 17, 2024

Regular price $219.00 USD
Regular price Sale price $219.00 USD
Sale Sold out
  • Dimmable LED power supply with built-in junction box enclosure
  • 100 - 277 V AC input, compatible with phase-cut wall dimmers, including TRIAC (incandescent / forward phase), electronic low voltage (ELV / reverse phase), and magnetic low voltage dimmers
  • 24V or 48V DC constant voltage output, with reduced brightness level corresponding to input dimming signal from wall-dimmer
  • Up to 96 watts of power output
  • UL Listed (E508692)

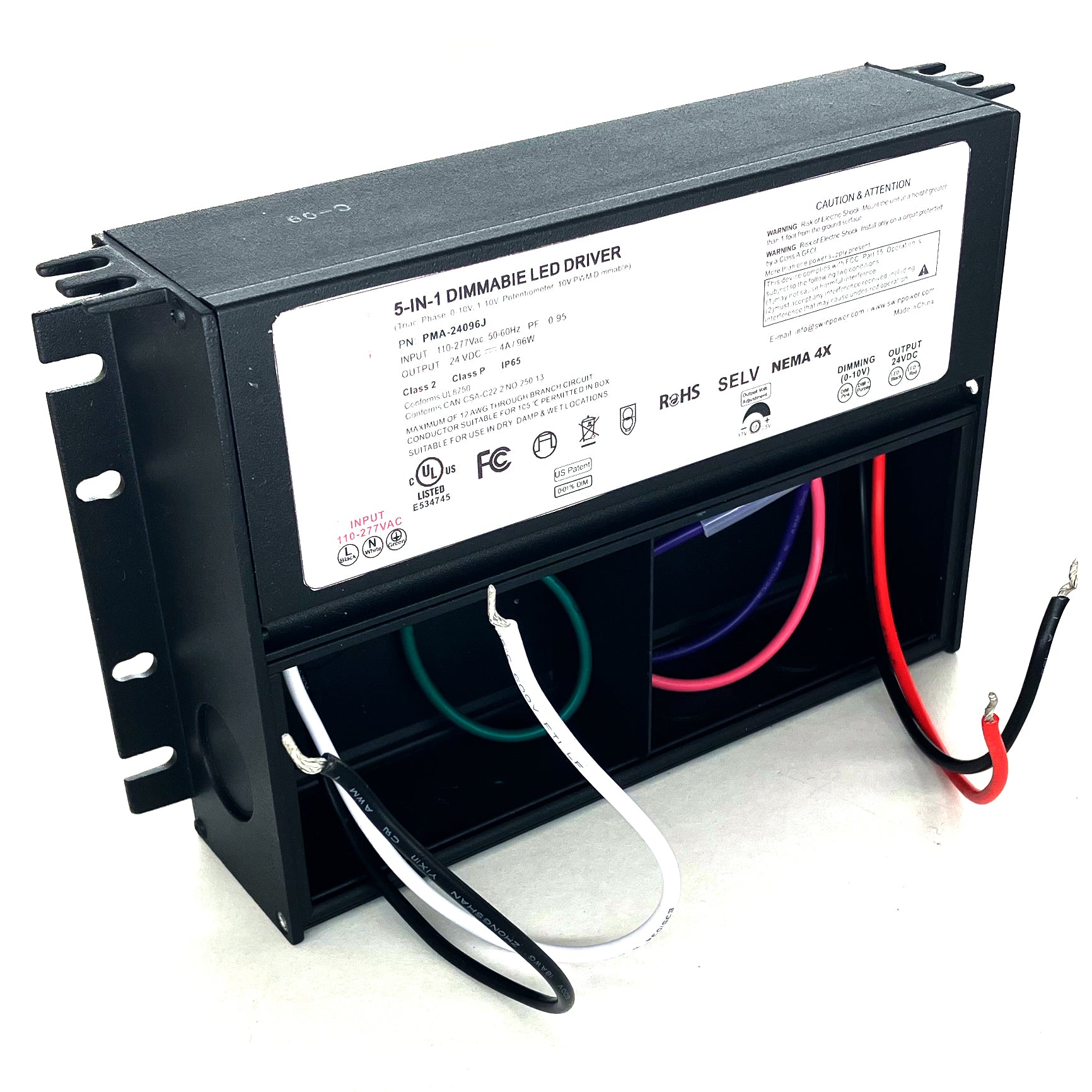

  • Input: Live (Black), Neutral (White), Ground (Green), 18 AWG wires
  • Output: V+ (Red), V- (Black), 16 AWG wires
  • Dimmable to 0% for most dimmer models (see below for complete list)


Product Description

The CENTRIC PRO SERIES™ dimmable LED power supply units allow LED strip lights to be operated and dimmed from a traditional wall-dimmer with smooth and flicker-free light output.

With compatibility across a wide range of legacy and modern phase-dimming products such as those made by Lutron and Leviton, these power supplies are an excellent choice for powering and controlling LED strip lights in residential and commercial lighting projects.

These power supply units perform a dual function of converting AC line voltage (120 volts) to low voltage DC (24 volts), as well as interpreting the wall-dimmer signal and adjusting the power provided to the LED strip to the corresponding brightness level.

Our innovative gamma-curve formulation and ultra-high 20 kHz PWM dimming frequency ensures the light output remains smooth and flicker-free across the dimming curve.

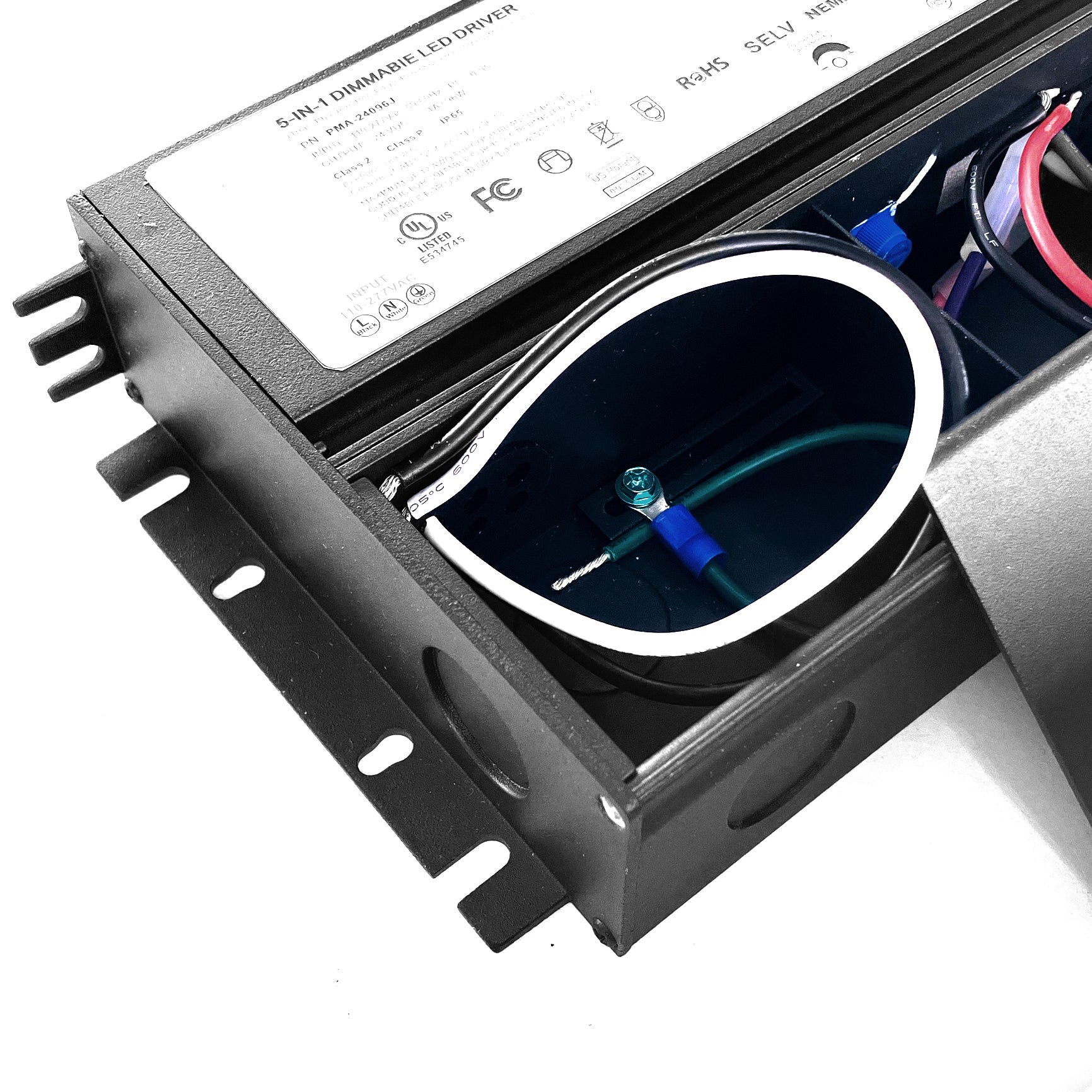

The CENTRIC PRO SERIES™ includes an integrated junction box enclosure, allowing for quick and easy code-compliant installation without the need for any additional electrical components.

Product Specifications

Input Voltage: 24V or 48V DC
Output Power: 96.0 watts
Connection: Hard-wired
Compatible dimmer types:

Mechanical Dimensions

Pricing & Ordering Information

This product is available in 24 volts or 48 volts and includes an integrated junction box.

PN 3902.24.096: 24 volts, integrated junction-box
PN 3902.48.096: 48 volts, integrated junction-box

Shipping & Returns

This item is in stock and typically ships within 1-3 business days.Shipping is free within the USA for orders over $50.

If you're not 100% satisfied with the performance, color or quality of your product, we'll work with you to make it right.

Simply contact us within 30 calendar days after delivery and we'll pay for return shipping (USA only) and offer you a full refund.

See our delivery policy,returns & refunds policy and warranty policy.

Product Disclaimers

This product is not a medical device and is not intended to diagnose, treat, cure, or prevent any disease. Read more...

View full details

FLICKER-FREE & HEALTHY

Some LED lights will produce rapid flicker or pulses that aren't immediately visible to the naked eye, which can cause headaches, nausea and eye strain. Our CENTRIC SERIES™ products include additional electrical circuitry to achieve a truly flicker-free light output that produces a comfortable and stable light level. Learn more about flicker here, or watch our video demonstration below.

Learn More

Flicker-Free Demonstration Video
