Infrared 850 nm IR LED Strip Light

Infrared 850 nm IR LED Strip Light

PART NUMBER 7031.85 | In stock

Regular price $35.00 USD
Regular price Sale price $35.00 USD
Sale Sold out

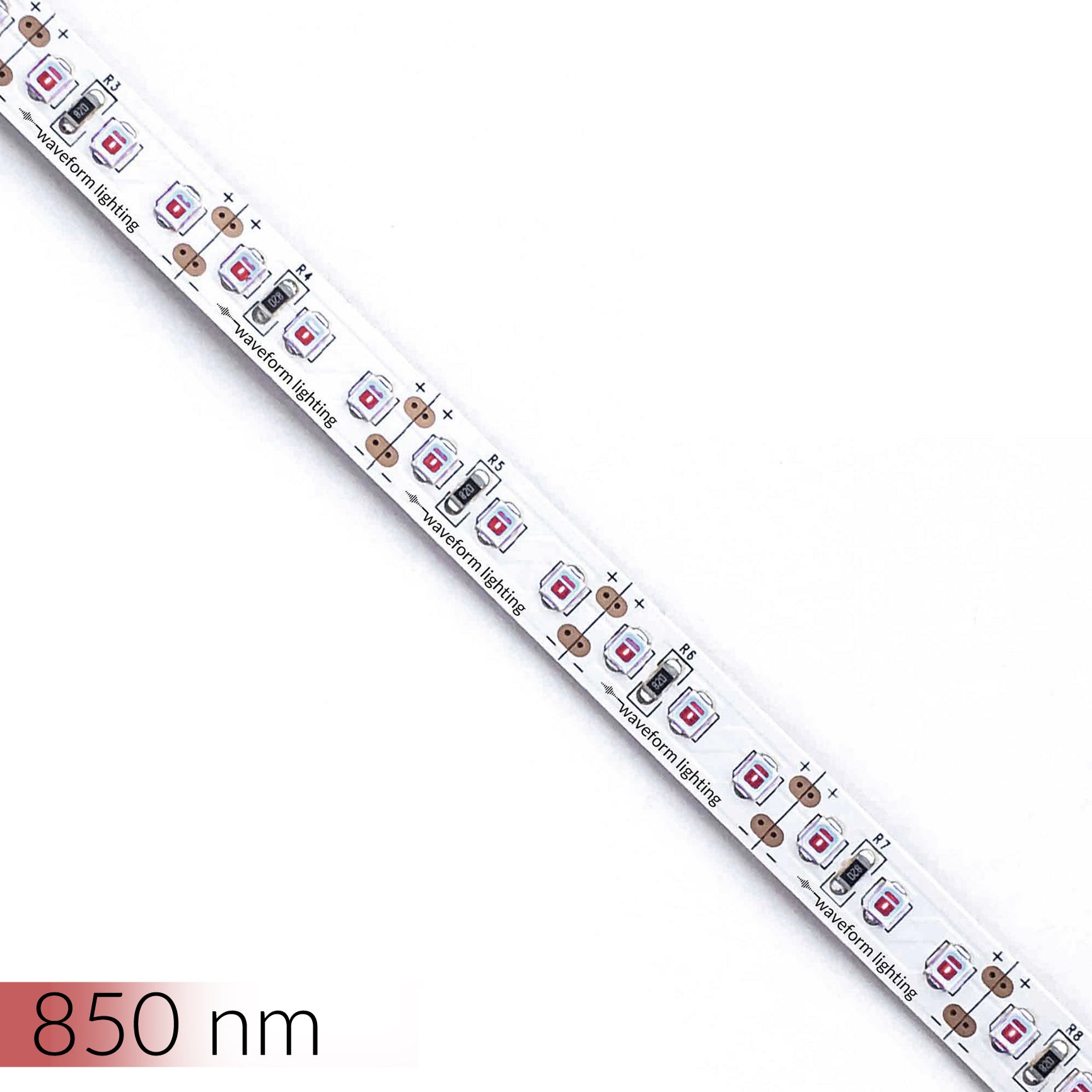

  • Flexible LED strip with 120 infrared LEDs per meter
  • IR wavelength of 850 nanometers
  • 850 nanometers is invisible to the human eye. Great for camera & sensor applications, as well as medical and therapeutic applications.
  • Available as a 1 meter (3.2 ft) or 5 meter (16.4 ft) reel
  • Input: 14 Watts per meter @ 12V
  • 12V DC power input, 0.8A power draw per meter
  • 3M VHB adhesive backing - simply peel off and stick to virtually any surface
  • FWHM: 10 nm
  • In stock and ships in 1-2 business days


Requires 12V DC input to operate. FilmGrade power supply (PN 3091) can operate a full reel (16 ft / 5 m) of realUV LED strip.

Using a third-party power supply? No problem - just make sure your power supply has enough power capacity for the length of LED strip you plan on connecting.

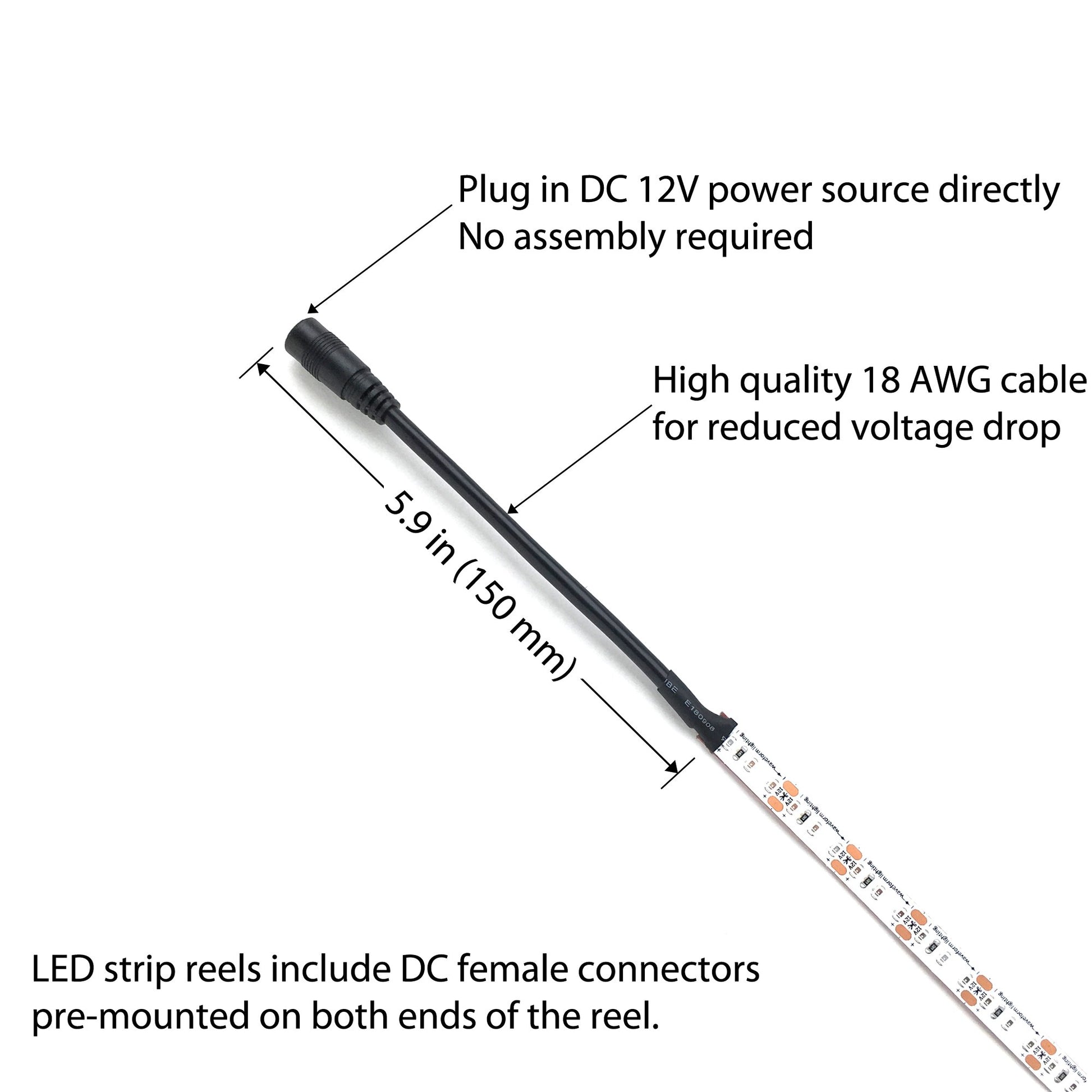

Infrared LED strips use the PLUG system, and have female DC connectors mounted on both ends of the strip. Simply plug the power supply into the LED strip receptacle and you will be up and running in a matter of seconds. No extra assembly or accessories needed.

Need to hard-wire these strips? See our DC plug adapters under PN 7094 and PN 7095.

Pre-applied 3M VHB double-sided tape on the back side allows for simple but reliable installation. Peel back the liner and apply to virtually any surface.

These LED strips can be cut to length in 1 inch intervals using just a pair of scissors.

Rejoin LED strip segments or connect them to individual power supplies using our solderless connectors. Use PN 3070 for connecting an LED strip segment to open wire, and PN 3071 to join LED strip segments together.

Infrared LED strips are fully dimmable down to 0%. For an in-line PWM dimmer, see PN 3081. Wall-dimmer setups (e.g. Lutron/Leviton) will require a dimmable power supply (PN 3093). More info on LED strip dimming here.

Product Downloads

Specification sheet download   Specification Sheet
