7200 Series™ 100W COB LED - 95 CRI Full Spectrum D65 (6500K)
7200 Series™ 100W COB LED - 95 CRI Full Spectrum D65 (6500K)
7200 Series™ 100W COB LED - 95 CRI Full Spectrum D65 (6500K)

7200 Series™ 100W COB LED - 95 CRI Full Spectrum D65 (6500K)

7200.65

Regular price $85.00 $75.00 Sale

  • Chip on board LED featuring full spectrum 95 CRI at D65 (6500K)
  • Rated at 100W nominal, maximum 350W
  • Ultra high lumen density light output of 10,000 lumens at rated power
  • Light emission surface dimensions of 0.84 x 0.84 inches (21.4 x 21.4 mm)
  • Premium bin Bridgelux 45x45 mil LED chips in a 10x10 grid for maximum reliability and stability (no leak current)
  • Free standard shipping (USA), in stock and ships in 1-2 business days

Product Overview

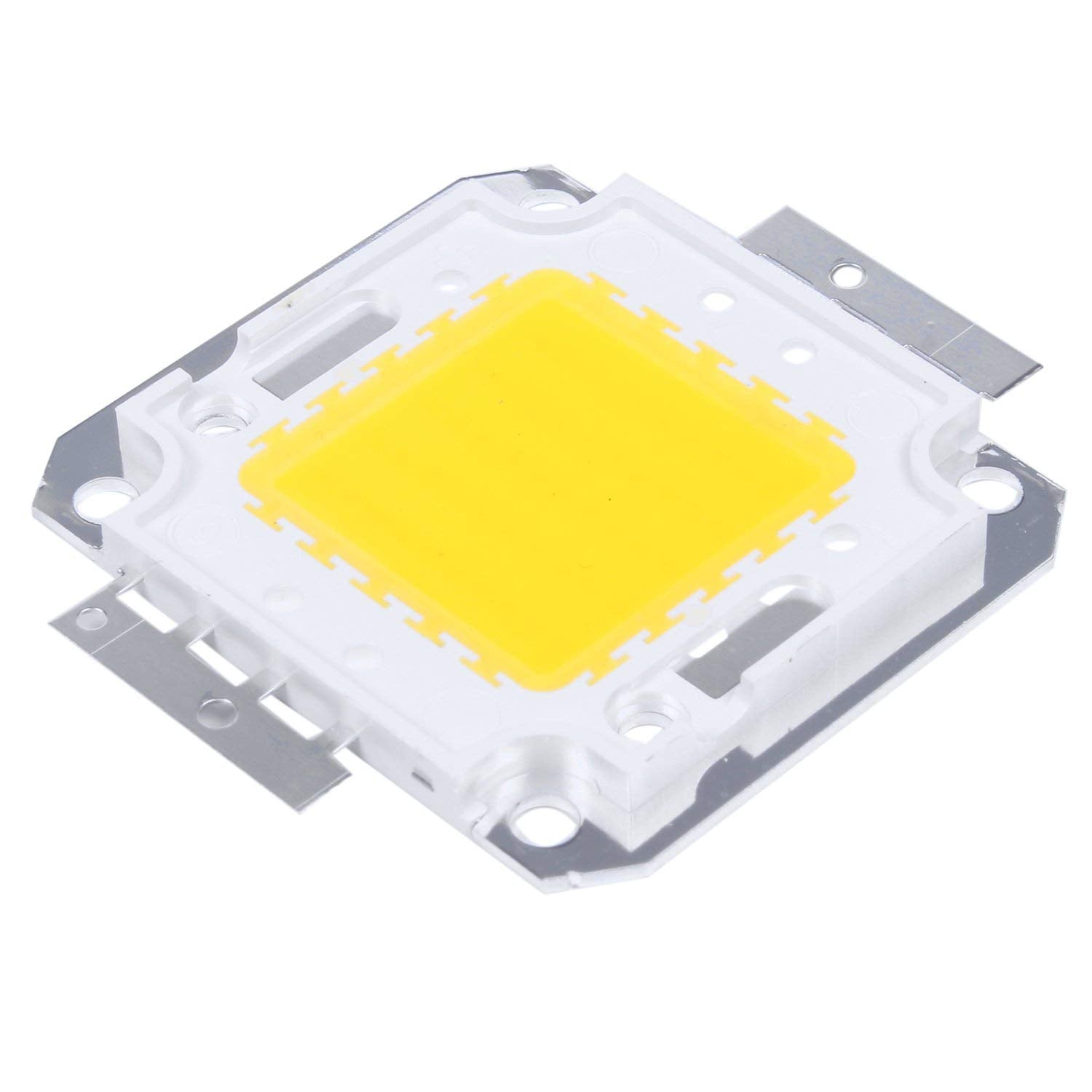

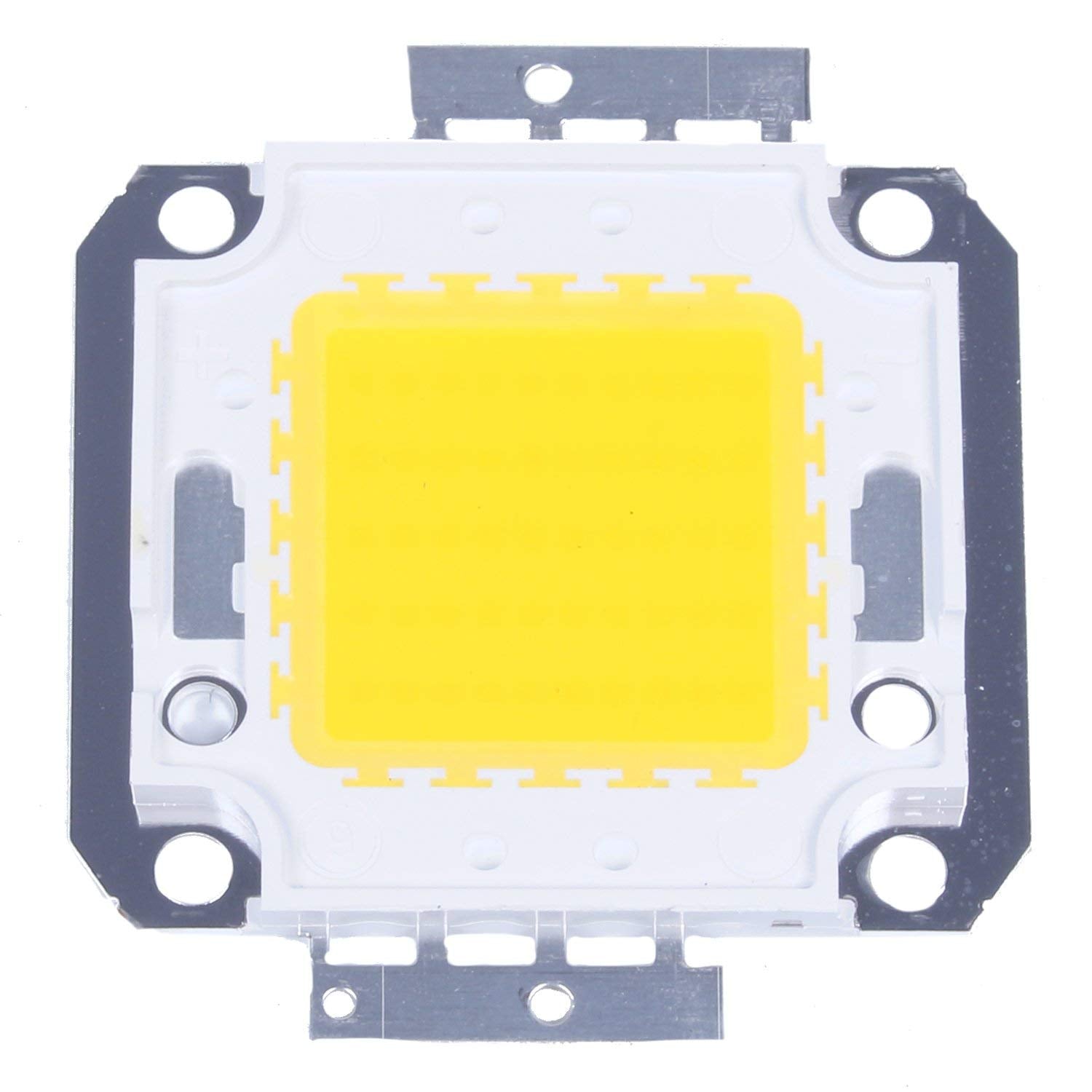

Waveform Lighting's 7200 Series™ 100W COB LED provides 10,000 lumens of 95 CRI, super high density light from a tiny surface area the size of a postage stamp.

Using an industry-standard 100W COB frame, we developed a unique phosphor mix that achieves an industry-first 95 CRI D65 (6500K) rating. The full spectrum phosphor recipes allow for a near-perfect replication of natural daylight from a single COB emitter.

Recommended Accessories

The COB LEDs require at minimum, the following accessories:

  • Power supply that can provide constant current control in the 25-30V region, such as Meanwell HLG-120H-30
  • Appropriate heatsinking and thermal interface material
  • Basic low voltage electronics knowledge and equipment such as wire and solder

Product Downloads

Specification sheet download   Specification Sheet

Specification sheet download   Photometric Report
